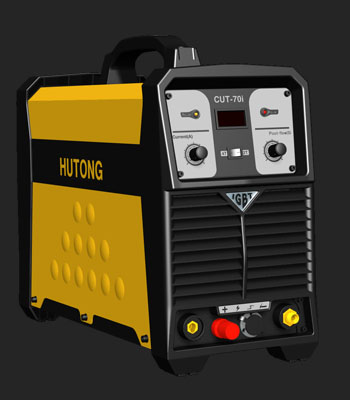

CUT-i Series IGBT Inverter Air Plasma Cutter

CUT-100E




Product description:
1.  With good protection of under voltage, over voltage and over current, it makes machine safe and reliable.
2.  Exact digital current preset, it makes machine easy operated.
3.  Advanced IGBT inverter technology, high working frequency, high working efficiency and energy saving.
4.  High frequency and high pressure ARC stricking. 100% ARC starting.
5.  Advanced air flow control system. It has saved of 30% air compare to traditional machine which prolongs the using ife of air compressor.
6.  With self-lock working mode. It reduces the working intensity greatly.
7.  With trl-proof design. It ensure working stable and reliable when in kinds of adverse circumstances.


Model

CUT-60i

CUT-70i

CUT-100E

CUT-120i

Input power voltage (V)

380V±10©‡

380V±10©‡

380V±10©‡

380V±10©‡

Frequency (HZ)

1~50Hz/60Hz

3~50Hz/60Hz

3~50Hz/60Hz

3~50Hz/60Hz

Rated input current (A)

16

20.2

32.3

37

No-load voltage (V)

250V

290V

350V

320V

Current adjusting range (A)

30-60A

30-70A

30-100A

40-120A

Rated input capacity (KVA)

7.5KVA

10.9KVA

16.9KVA

24KVA

Duty cycle (%)

60©‡

60©‡

60©‡

60©‡

Working gas pressure(Mpa)

0.4-0.6

0.4-0.6

0.5-0.7

0.5-0.7

Case protection degree

IP21

IP21

IP21

IP21

Arc starting

Touch

Non touch

Non touch

Non touch

Max.cutting thickness

<22mm

<28mm

<35mm

<39mm

Weight (kg)

13

21.4

23.3

23.3

Overall dimension (mm)

435*1897*350

540*220*425

540*220*425

590*350*600
