Prouducts

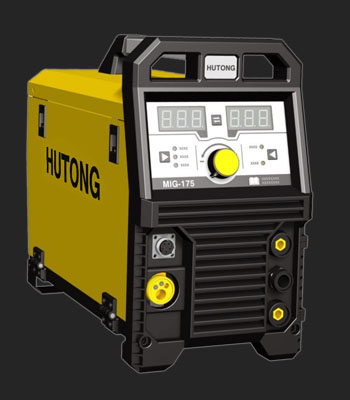

MIG Series IGBT Inverter MIG/MAG/MMA Welder
 |
 |
- Advanced SMD surface-mount design
- With good protection of under voltage,over voltage and over current,it makes machine safe and reliable
- Exact digital current/voltage display,it makes machine be easy operated
- Advanced IGBT inverter technology,high working frequency,high working efficiency and energy saving
- High voltage and slow feeding arc striking,no exploding wire,removing tip ball at arc ending
- Constant voltage/constant output characteristic,one machine with MIG/MMA/TIG welding
- With arc ending working mode,it reduces the working intensity greatly
- Digital interface,more convenient operation
- With tri-proof design,it ensures working stable when in kinds of adverse circumstances
|
¡¡ Model |
MIG-175i |
|
|
|
MIG |
MMA |
|
Input power voltage (V) |
AC220V±10©‡ |
AC220V±10©‡ |
|
Rated input capacity(KVA) |
5 |
6 |
|
Rated input current (A) |
25 |
27 |
|
No-load voltage (V) |
60 |
60 |
|
Duty cycle (%) |
60% |
60% |
|
Current adjusting range (A) |
40-180 |
15-180 |
|
Rated output Voltage (V) |
14-25 |
15-27 |
|
Welding thickness |
0.6-6mm |
|
|
Suitable wire |
§¶0.6/0.8 |
|
|
Wire feed rate(m/min) |
3-15 |
|
|
Gas flow (L/min) |
5-10 |
|
|
Overall dimension(mm) |
495×225×395 |
|
|
Weight (kg) |
15 |
|
