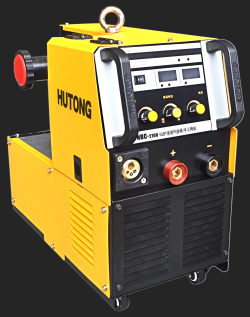

MIG Series IGBT Inverter MIG/MAG/MMA Welder



hutong

Product description:

  ¡ôAdvanced SMD surface-mount design

  ¡ôWith good protection of under voltage,over voltage and over current,it makes the machine safe and reliable.

  ¡ôExact digital current/voltage display, it makes machine be easy operated.

  ¡ôAdvanced IGBT£¨60K£© inverter technology,high working frequency,high working efficiency and energy saving.

  ¡ôSoft starting and slow feeding arc striking,no exploding wire,removing tip ball ar arc ending.

  ¡ôHigh voltage and slow feeding arc striking,no exploding wire,removing tip ball at arc ending.

  ¡ôConstant voltage/constant current output characteristic, one machine with MIG/MMA/simple TIG welding.

  ¡ô220V/380V power input automatically changing,nanocrystalline core,high capacity and low loss.

  ¡ôWith 2T/4T working mode,convenient operation

  ¡ôWith tri-proof design,it ensures working stable and reliable when in kinds of adverse circumstances.





¡¡          Model

MIG-270V

Input power voltage (V)

2P~AC380V/220V±10©‡

Frequency (Hz)

50/60

Rated input capacity(KVA)

MMA 9.8

MIG 8.7

Rated input current (A)

MMA 26/44

MIG 23/40

No-load voltage £¨V£©

60

Duty cycle (%)

60

Rated output Current (A)

270

Insulation class

F

Case protection class

IP21

Dimension (mm£©

507×260×532

Weight£¨kg)

22

Welding thickness

0.6-6mm

Suitable wire

Φ0.8/1.0
