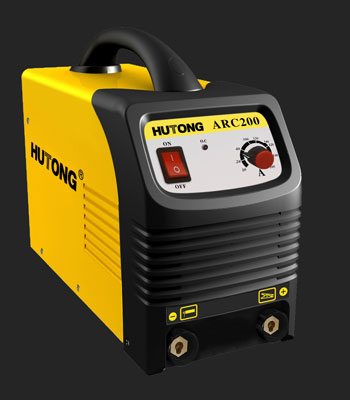

ARC Series MOSFET Inverter DC MMA Welder
![]() |
![]() |
Product description:
1)Adopting advanced inverter technique and excellent imported capacity equipment,high working efficiency,small in size and light in weight
2)Adopting pulse width technique
3)Protection equipment are set internally to prevent over heat,over current,lack of voltage etc. to ensure safety operation
4)Soft magnetic ferrite material are used in high frequency tranformer,which is small wastage, high conversion rate, high effficiency and energy-saving
5)Simple stucture,excellent technics,durability,reliablity and easy maintenance ideal equipment to weld stainless steel,carbon steel,pure copper(red copper)
6)Usable electrode: Acidic,alkalesent,cellulose
7)Adopting passive power factor correction,and high in power factor
8)Protection equipment are set to prevent input power lack of phase,lack of voltage and over voltage and strong practicability
Model |
ARC-160 |
ARC-200 |
ARC-250 |
Input power voltage (V) |
AC-220±10©‡ |
AC-220±10©‡ |
AC-380±10©‡ |
Frequency (Hz) |
50/60 |
50/60 |
50/60 |
Rated input current (A) |
34 |
43 |
43.6 |
No-load voltage (V) |
56V |
56V |
70V |
Current adjusting voltage (A) |
20-140 |
20-165 |
20-200 |
Rated output voltage (V) |
27 |
28 |
30 |
Duty cycle (%) |
60©‡ |
60©‡ |
60©‡ |
Efficiency (%) |
80©‡ |
80©‡ |
80©‡ |
Power factor |
0.73 |
0.73 |
0.73 |
Insulation class |
F |
F |
F |
Case protection degree |
IP21 |
IP21 |
IP21 |
Weight (kg) |
7 |
8 |
9 |
Overall dimension (mm) |
406*153*232 |
406*153*232 |
406*153*232 |
