ZX7 Series IGBT Inverter DC Multi-operator welder
Product description:
1¡¢Be able to weld carbon steel,stainless steel
2¡¢Adopting soft switch high frequency inverter technique,high reliability,light in weight and energy saving
3¡¢Easy arc starting,stable welding arc and easy controlling of weld puddle
4¡¢High duty cycle and continuous welding for a long time
5¡¢Digital meter,exactly preset the welding current
6¡¢Adopting passive power factor correction,and high in power factor
7¡¢Arc force adjusts with the length of welding cable,which can achieve remote welding

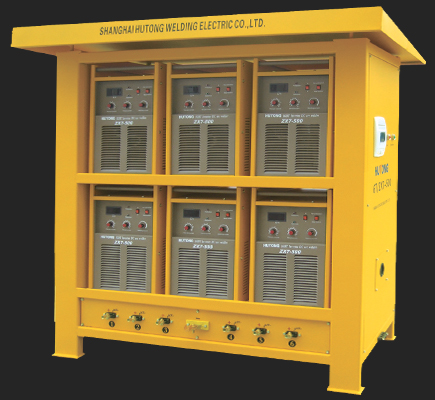

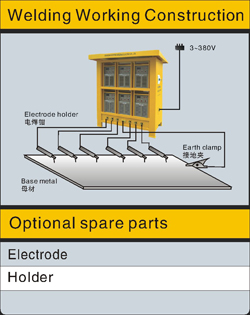

8¡¢Combined several single ZX7 welder to be one multi-operator welder with function of dust-proof and rain proof,which is convenient for field operation
Model |
6T/ZX7-315 |
6T/ZX7-400 |
6T/ZX7-500 |
6T/ZX7-630 |
Input power voltage (V) |
AC-380±10©‡ |
AC-380±10©‡ |
AC-380±10©‡ |
AC-380±10©‡ |
Frequency (Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
Rated input current (A) |
22×6 |
32×6 |
44×6 |
61×6 |
Output No-load voltage (V) |
75 |
75 |
75 |
75 |
Current adjusting voltage (A) |
20-315 |
20-400 |
20-500 |
30-630 |
Rated input capacity (KVA) |
12×6 |
17×6 |
23.6×6 |
32.7×6 |
Duty cycle (%) |
60©‡ |
60©‡ |
60©‡ |
60©‡ |
Power factor |
0.95 |
0.95 |
0.95 |
0.95 |
Full load Efficiency (%) |
89©‡ |
89©‡ |
89©‡ |
89©‡ |
Welding thickness(mm) |
1-12 |
1-15 |
1-15 |
1-20 |
Weight (kg) |
401 |
405 |
500 |
660 |
Overall dimension (mm) |
1484*980*1700 |
1484*980*1700 |
1574*990*1760 |
1694*1050*1820 |
