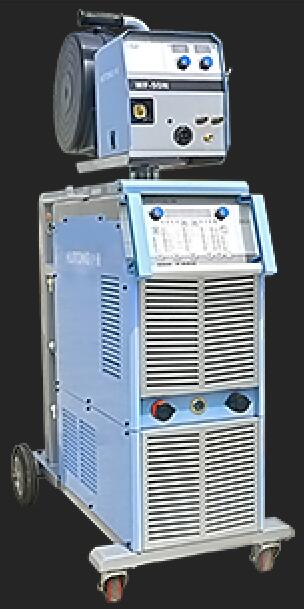

MIG Series IGBT Inverter MIG/MAG/MMA Welder
 |
 |
Product description:
1) All digital expert system,one key adjustment.
2) Super large storage,user can set welding data
3) Advanced IGBT inverter technology,high working frequency,high working efficiency and energy saving.
4) One machine with TIG/MIG/CO2/MMA welding
5) Unique double pulse output,which can easy weld aluminum with good performance.
6) With good protection of under voltage,over voltage and over current,it makes the machine safe and reliable.
7) Humane design,easy for operation.
8) With tri-proof design,it ensures working stable and reliable when in kinds of adverse circumstances.
|
Model |
MIG-350STP |
MIG-500STP |
|
Primary voltage (V) |
AC-380V±10% |
|
|
Frequency (Hz) |
50/60 |
|
|
Rated Input Capacity (KVA) |
14 |
24 |
|
Rated Input Current (AŁ© |
26 |
45 |
|
No-load voltage(V) |
75 |
80 |
|
Duty Cycle (%) |
60 |
60 |
|
Rated output current (A) |
20-350 |
60-500 |
|
Efficiency (%) |
85 |
85 |
|
Insulation class |
F |
F |
|
Case protection class |
IP21 |
IP21 |
|
Dimension (mm) |
1000×520×1450 |
1000×520×1450 |
|
Weight (KG) |
98 |
102 |
|
Suitable wire |
Φ0.8/1.0/1.2 |
Φ1.0/1.2/1.6 |
